Tile fixing in IslamabadHomeowner ProjectOngoing Project

Askari 10 — 2 Kanal House

Format & DimensionMultiple residential formats
MaterialLarge-format porcelain floor tiles in diagonal diamond layout with border inlays and stone skirting moulding; large-format cream porcelain wall tiles with vein-matched feature band and mosaic accent in master bathroom
Property2 Kanal House
Project StatusOngoing

Installation Challenge

Maintaining consistent alignment and finish quality across a large two-kanal residence while coordinating with active house construction. The hallway features a 45-degree diagonal field tile grid framed by border tiles and metallic inlays that must remain square to walls and column piers, alongside multi-material master bathroom tiling.

ArcheTiles Engineering Solution

Work is being completed in planned stages. For the corridor flooring, center-lines and border datums were laser-aligned to ensure symmetrical diagonal cuts at perimeter borders, joints were set flush, and classical stone skirting was hand-mitred around column bases. In the bathroom, every joint is held by levelling clips while the adhesive cures.

Technical Specification Ledger

Site Engineering Details

Adhesive & Mortar SystemSelected on site to suit each tile and substrate
Sub-floor PreparationActive substrate preparation and levelling
Layout Grid StrategySite-measured 45-degree diagonal diamond layout with brass inlay border trims, mitred classical stone skirting moulding, and levelling clips on all joints
Execution DurationOngoing
Work Currently Underway

Final specifications and the project passport will be recorded after completion and handover.

We offer visit to our clients — you can visit our sites which are in progress in F-6, F-7, and across Islamabad to inspect our craftsmanship firsthand.

Request Similar Installation Survey
On-Site Visual Evidence

Project Media & Execution Gallery

Explore authentic site photos and video recordings from this project installation.

Live On-Site Video Footage (3)

Video Recording #1On-Site Execution
Video Recording #2On-Site Execution
Video Recording #3On-Site Execution

Installation Photographs (15)

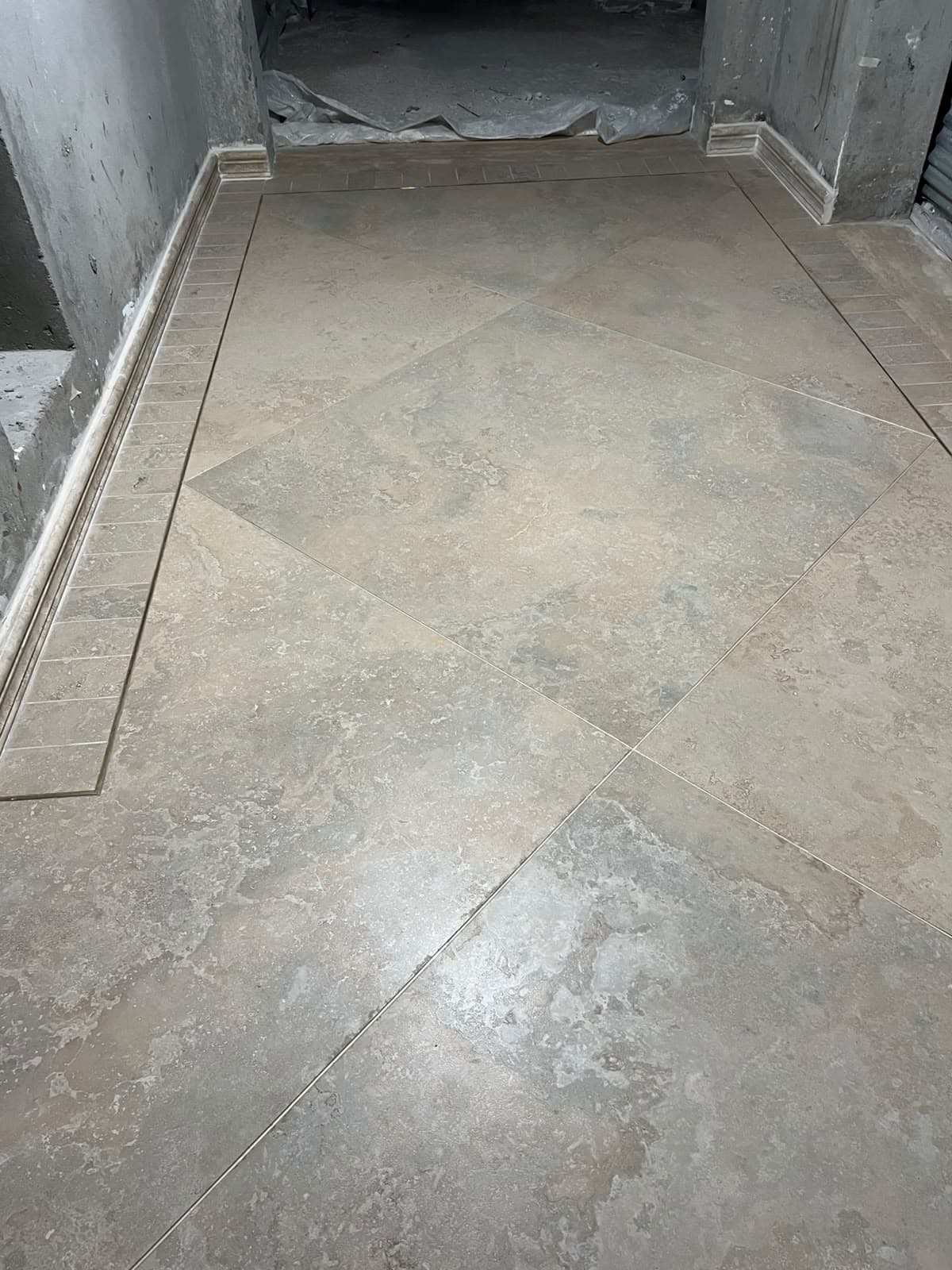

Corridor floor featuring diamond-pattern large-format porcelain tiles framed with border inlays and stone skirting in Askari 10, Islamabad
Askari 10 — 2 Kanal House #1

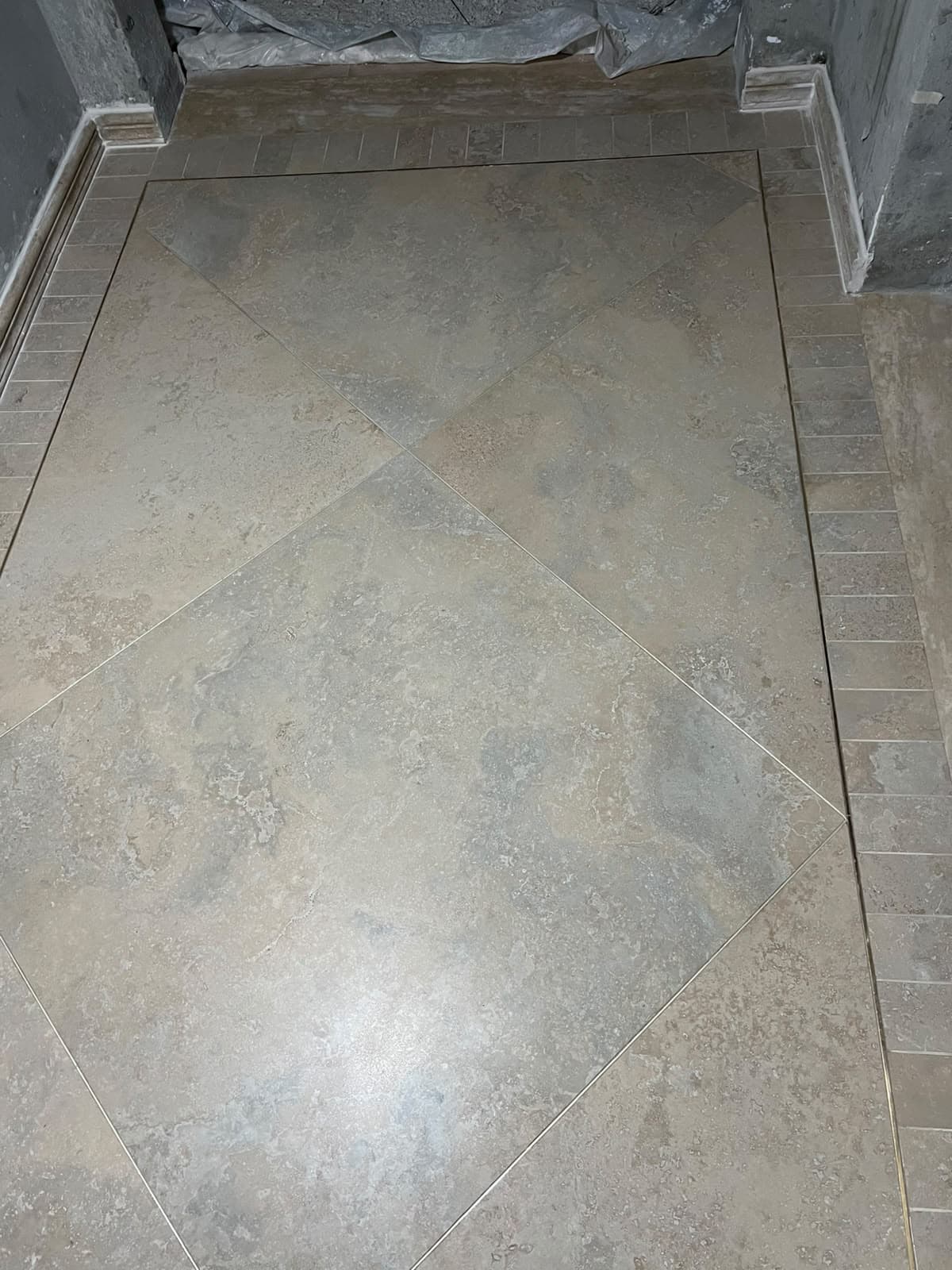

Symmetrical corridor layout with diamond-laid porcelain tiles, brass accent trim, and stacked border tiles in Askari 10
Askari 10 — 2 Kanal House #2

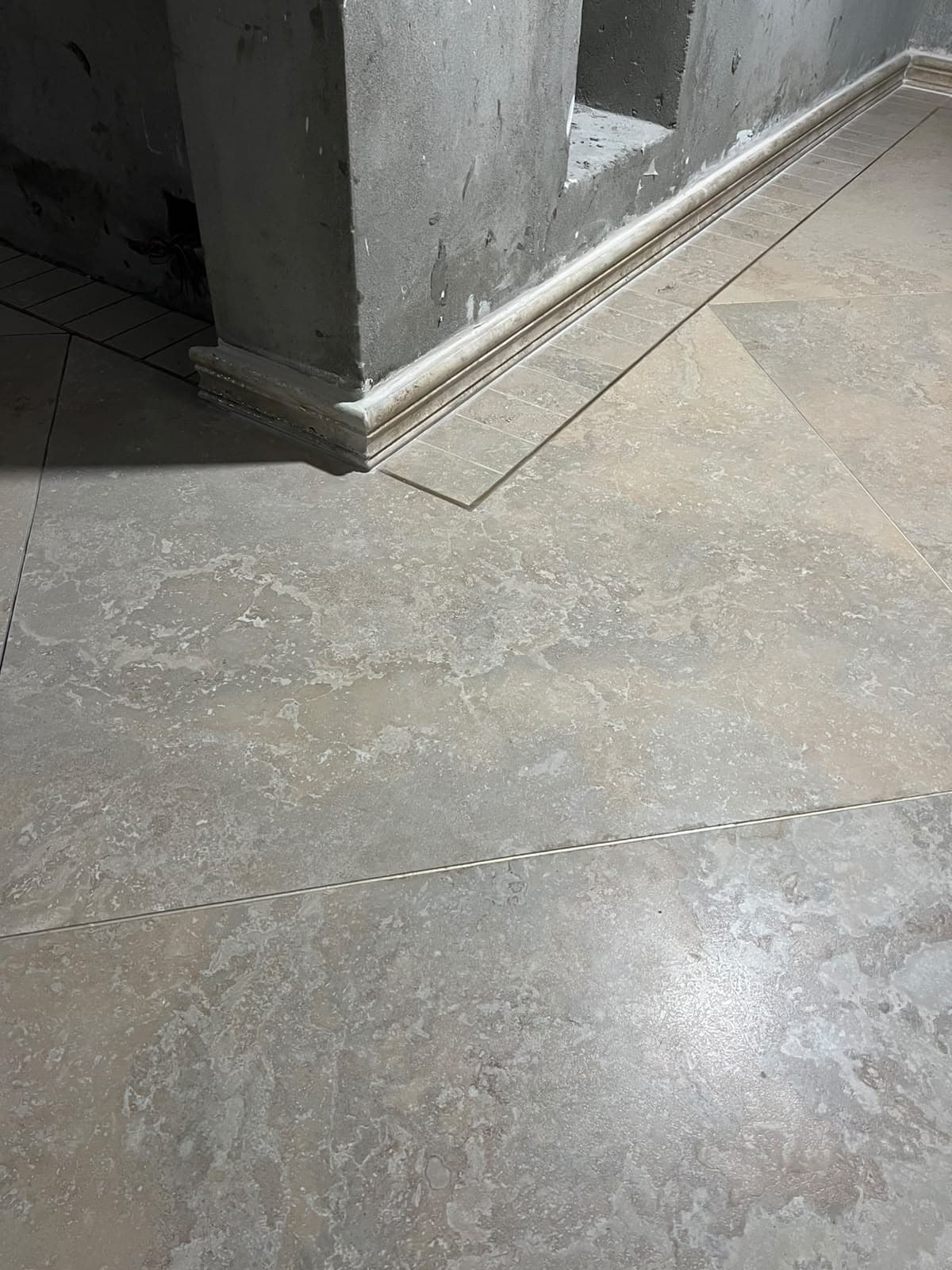

Corner pillar base with mitred stone skirting moulding, rectangular border tile, and diagonal porcelain floor tile in Askari 10 residence, Islamabad
Askari 10 — 2 Kanal House #3

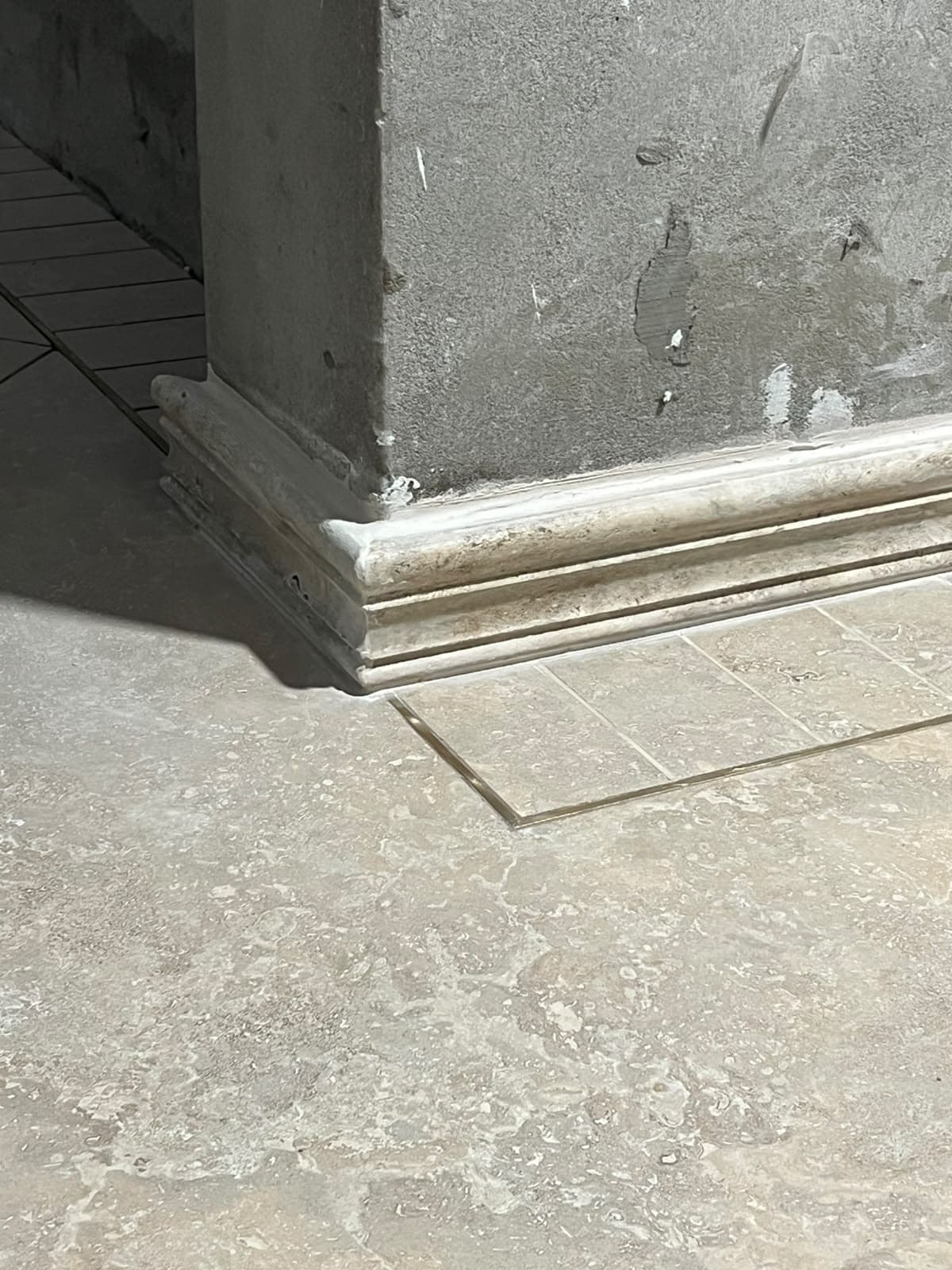

Close-up of precision hand-mitred classical stone skirting moulding around a structural pillar base in Askari 10, Islamabad
Askari 10 — 2 Kanal House #4

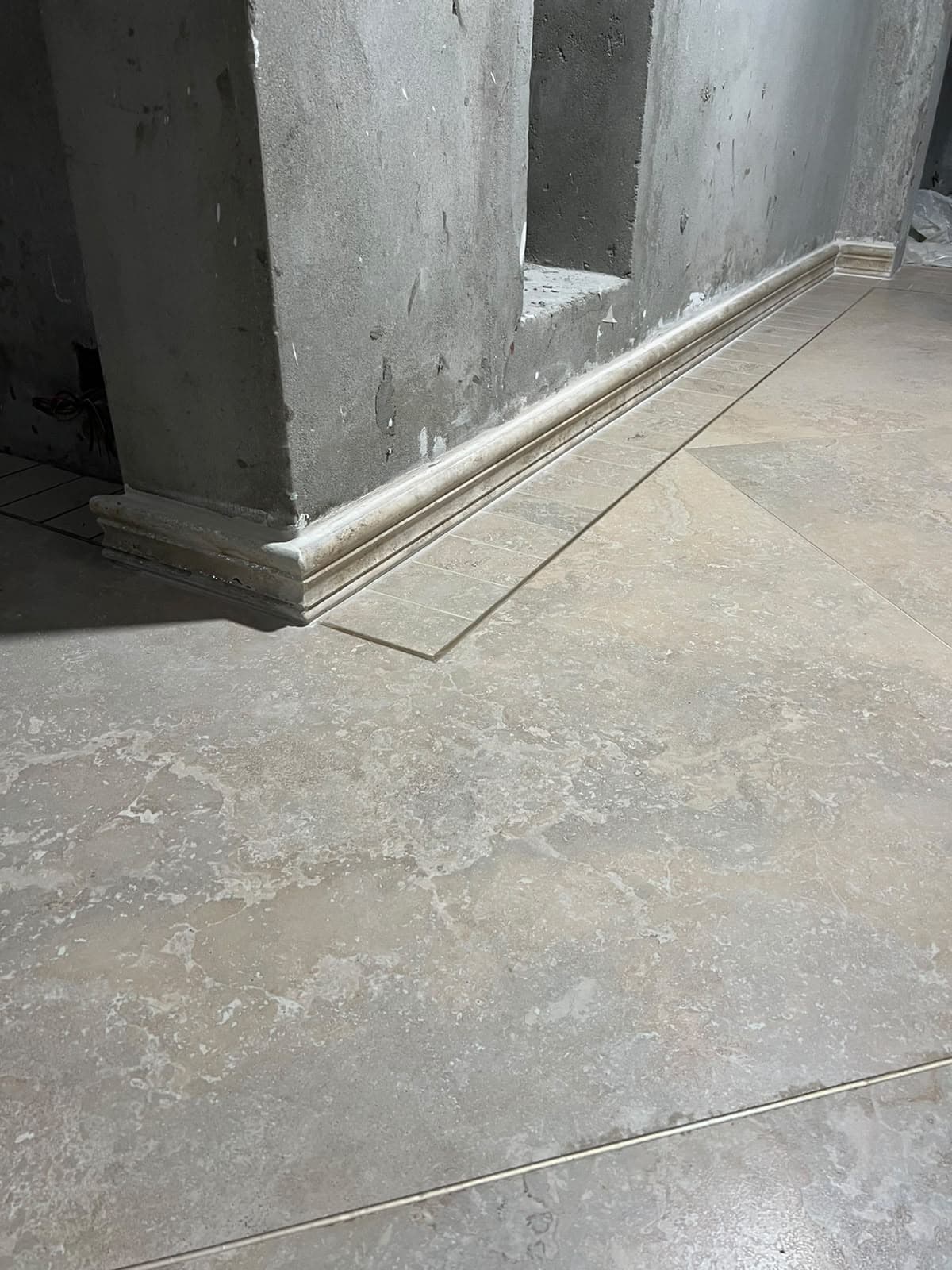

Continuous stone skirting moulding and rectangular tile border along the corridor wall in Askari 10, Islamabad
Askari 10 — 2 Kanal House #5

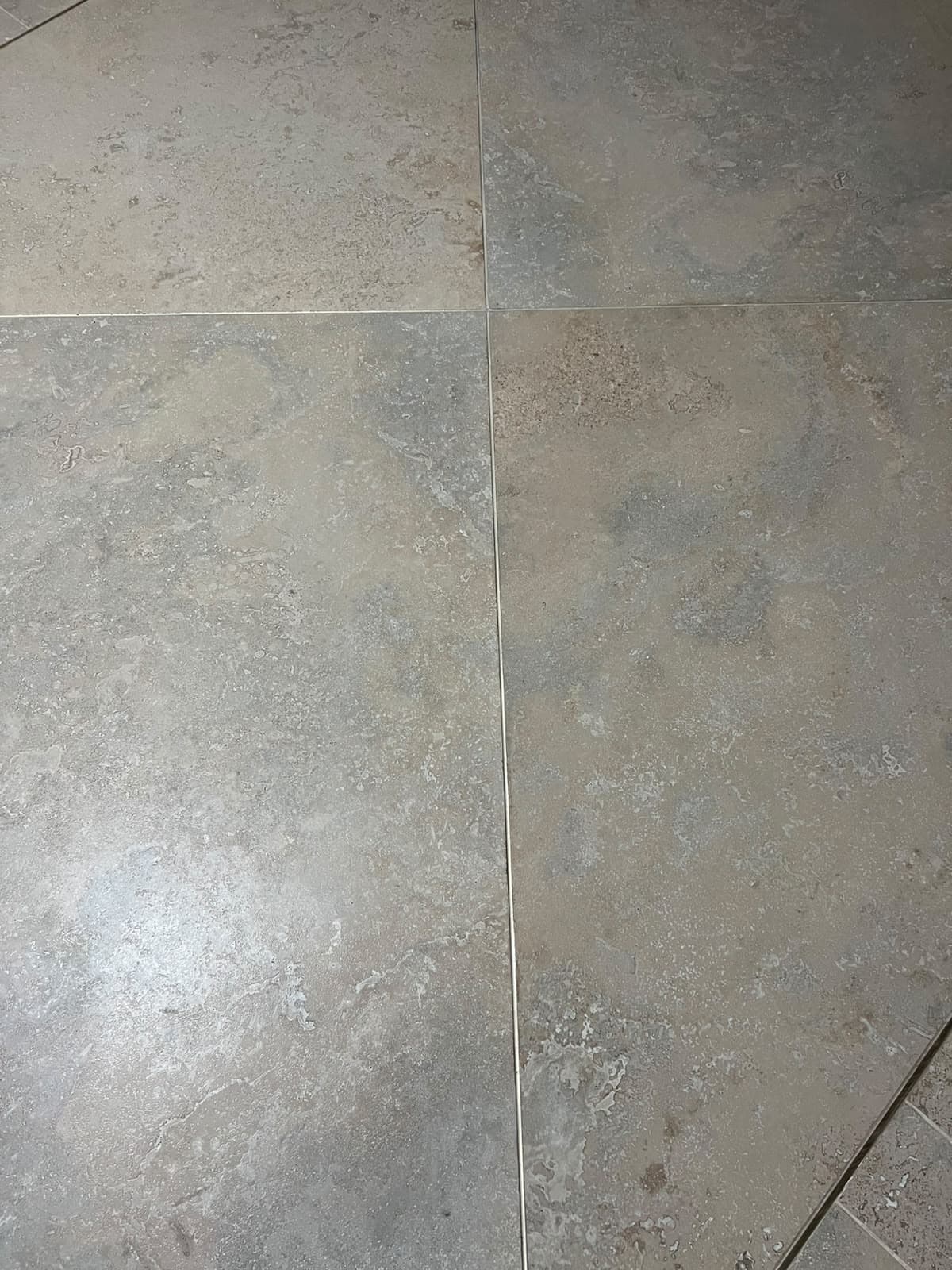

Top-down view of four-way floor tile intersection demonstrating flush zero-lippage joint alignment in Askari 10, Islamabad
Askari 10 — 2 Kanal House #6

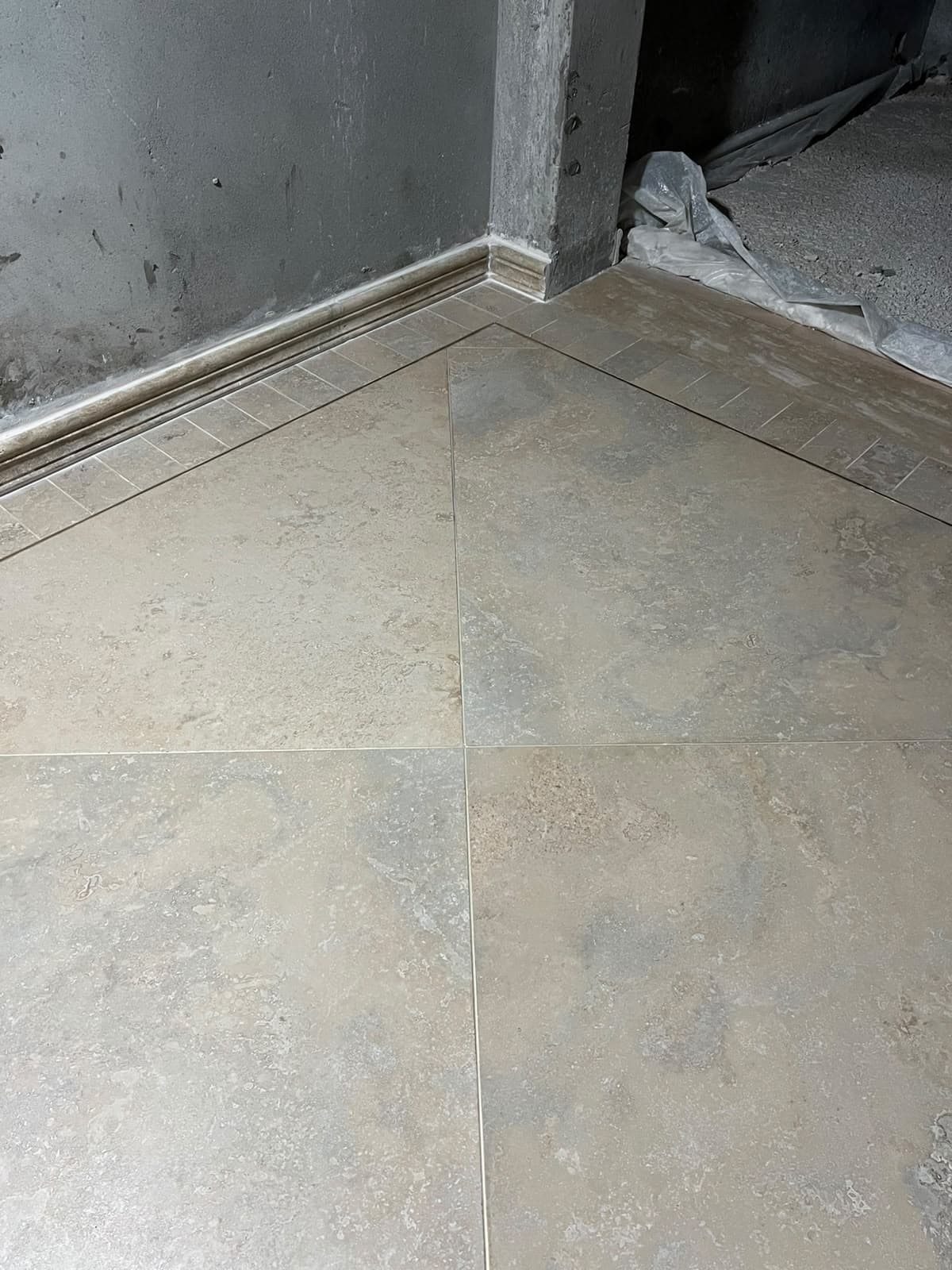

Intersection where 45-degree diagonal floor tiles meet the perimeter border and skirting moulding at a corridor corner, Askari 10
Askari 10 — 2 Kanal House #7

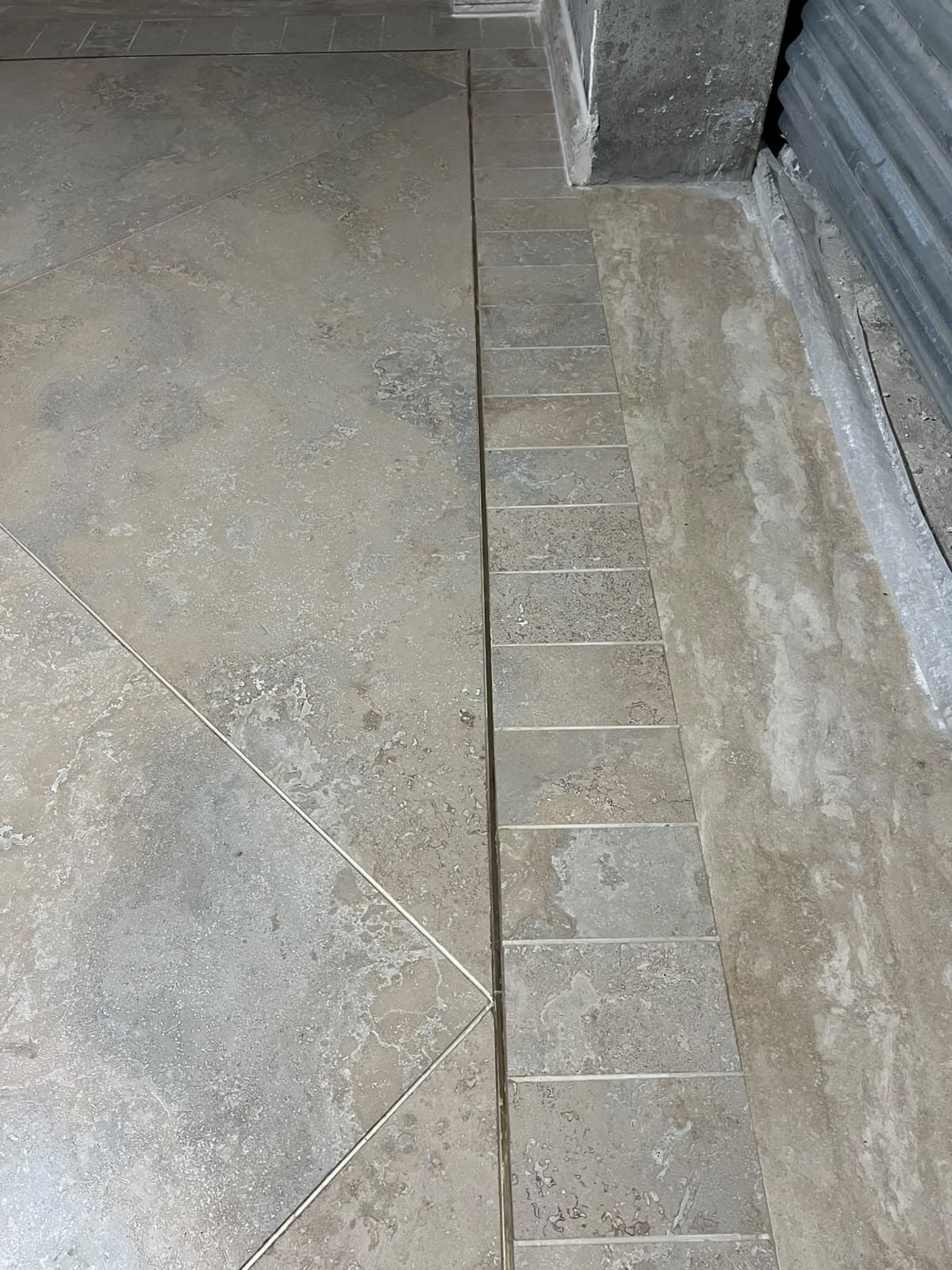

Detailed border transition featuring diagonal porcelain floor tile, metallic inlay strip, and stacked border tiles in Askari 10
Askari 10 — 2 Kanal House #8

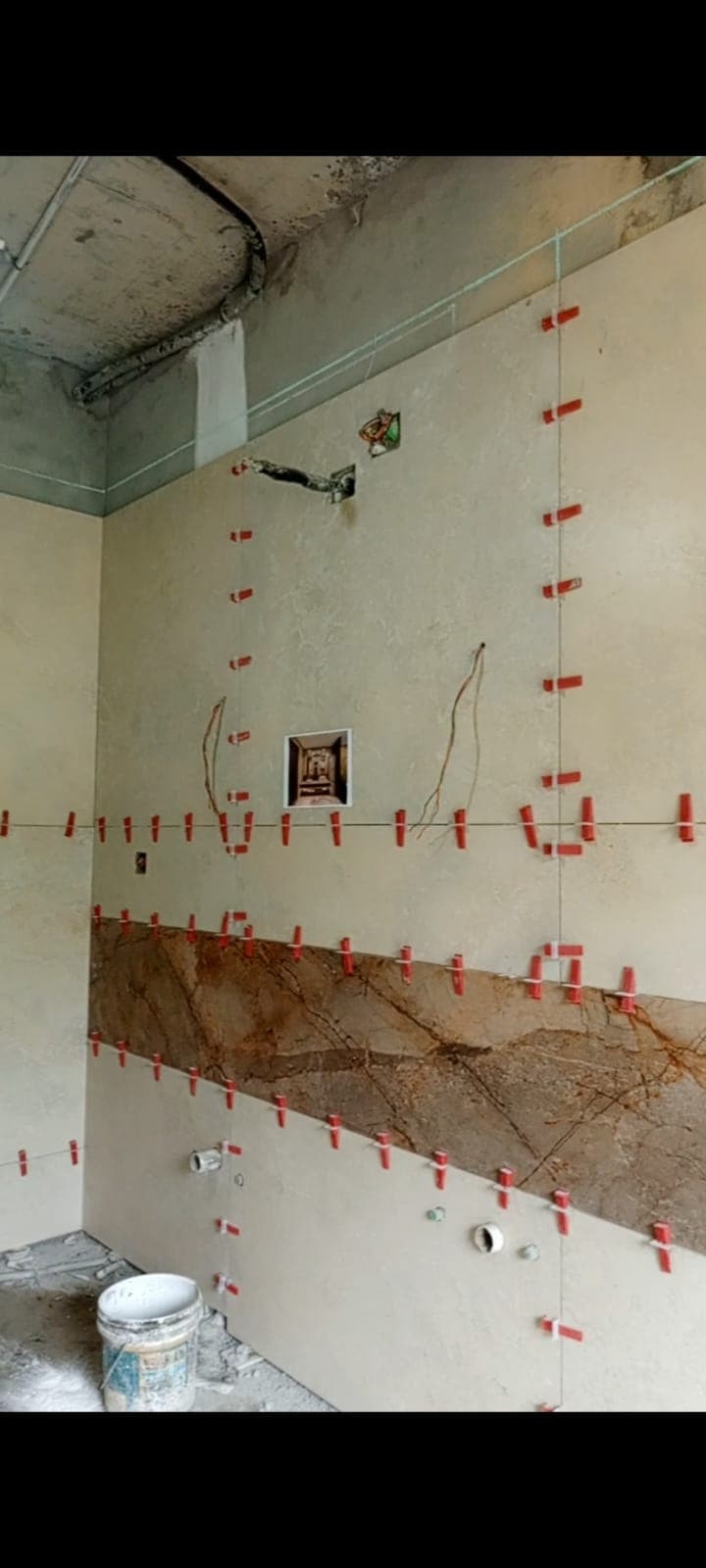

Master bathroom wall being tiled with large-format cream porcelain on levelling clips, with a brown vein-matched feature band, Askari 10 Islamabad
Askari 10 — 2 Kanal House #9

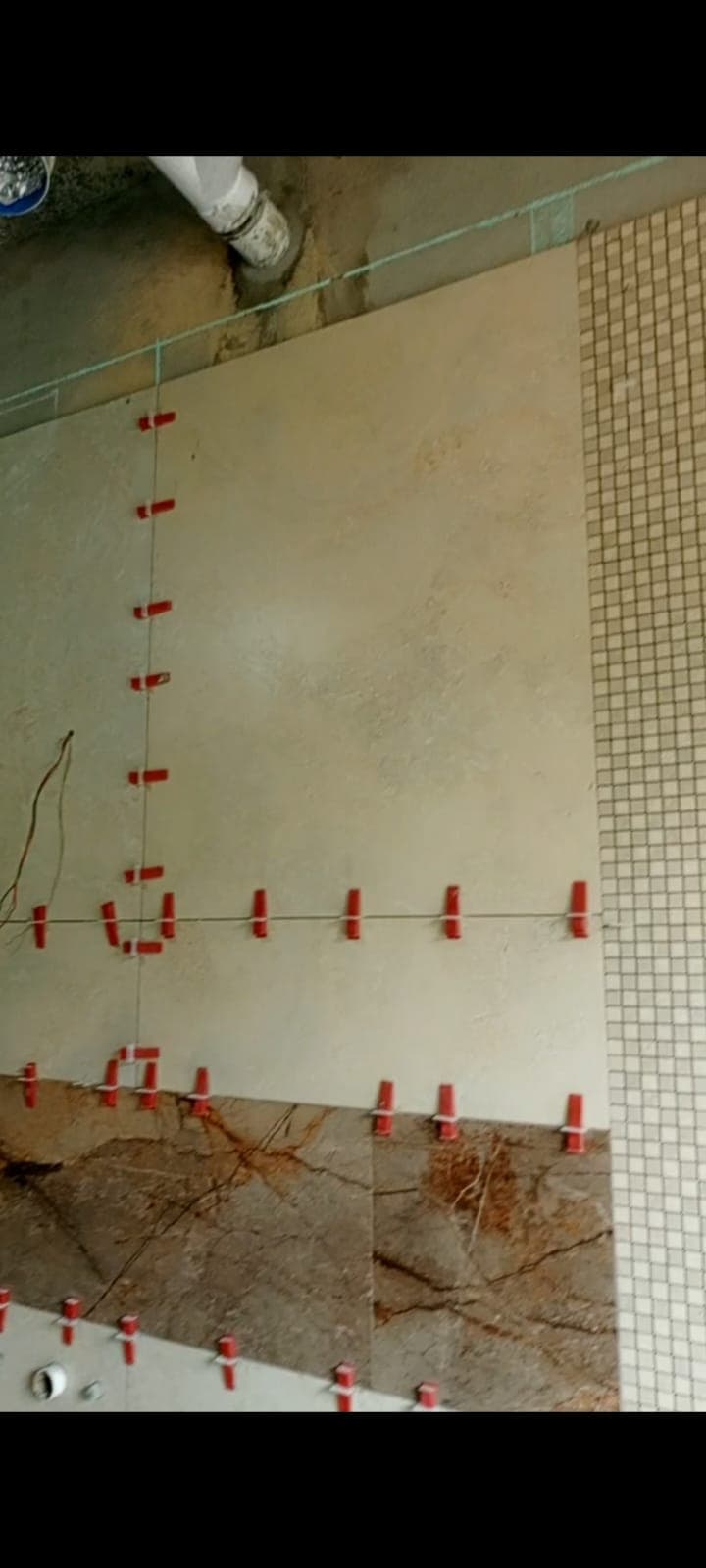

Bathroom wall corner where large cream porcelain tiles meet a brown feature band and a beige mosaic strip, Askari 10 Islamabad
Askari 10 — 2 Kanal House #10

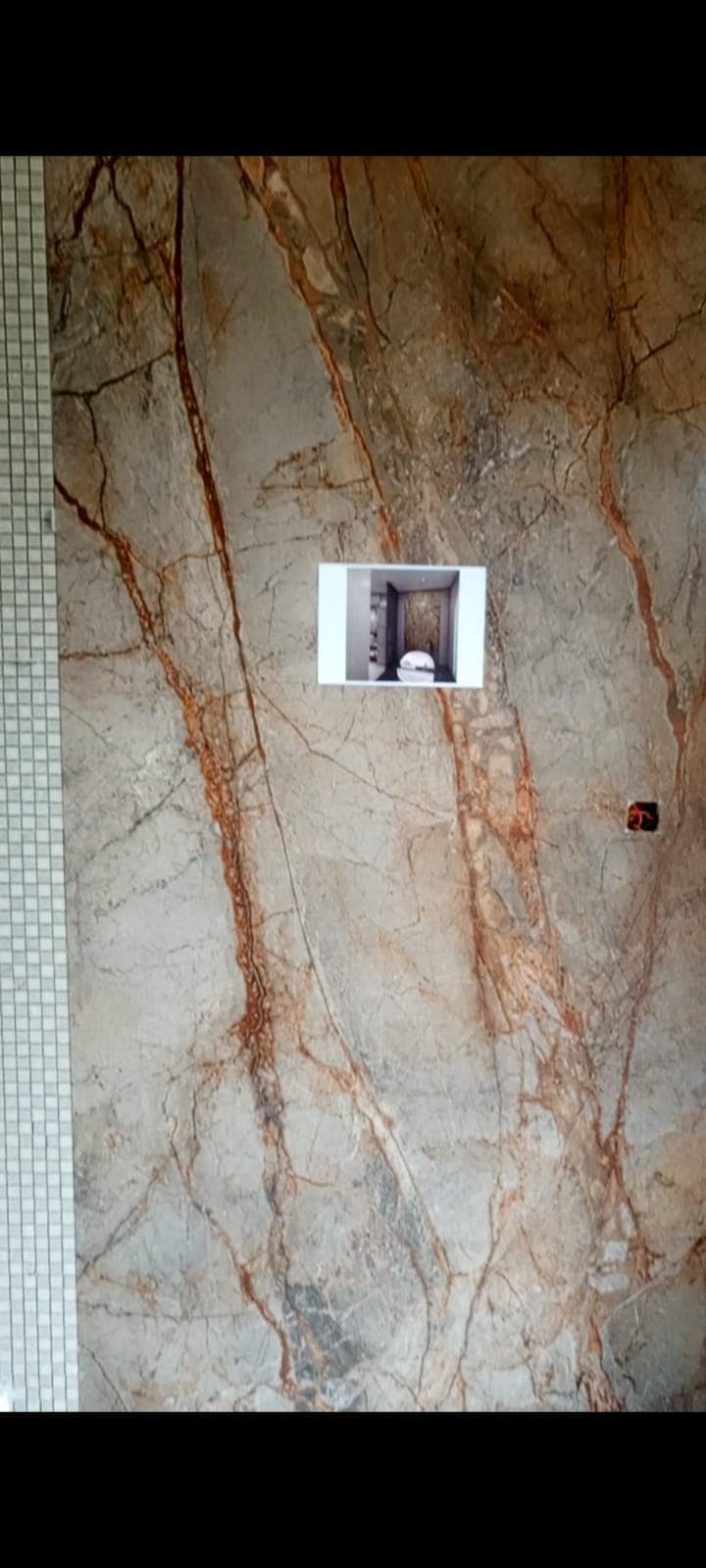

Close-up of the brown vein-matched marble-look feature slab with the design reference taped to it, Askari 10 bathroom, Islamabad
Askari 10 — 2 Kanal House #11

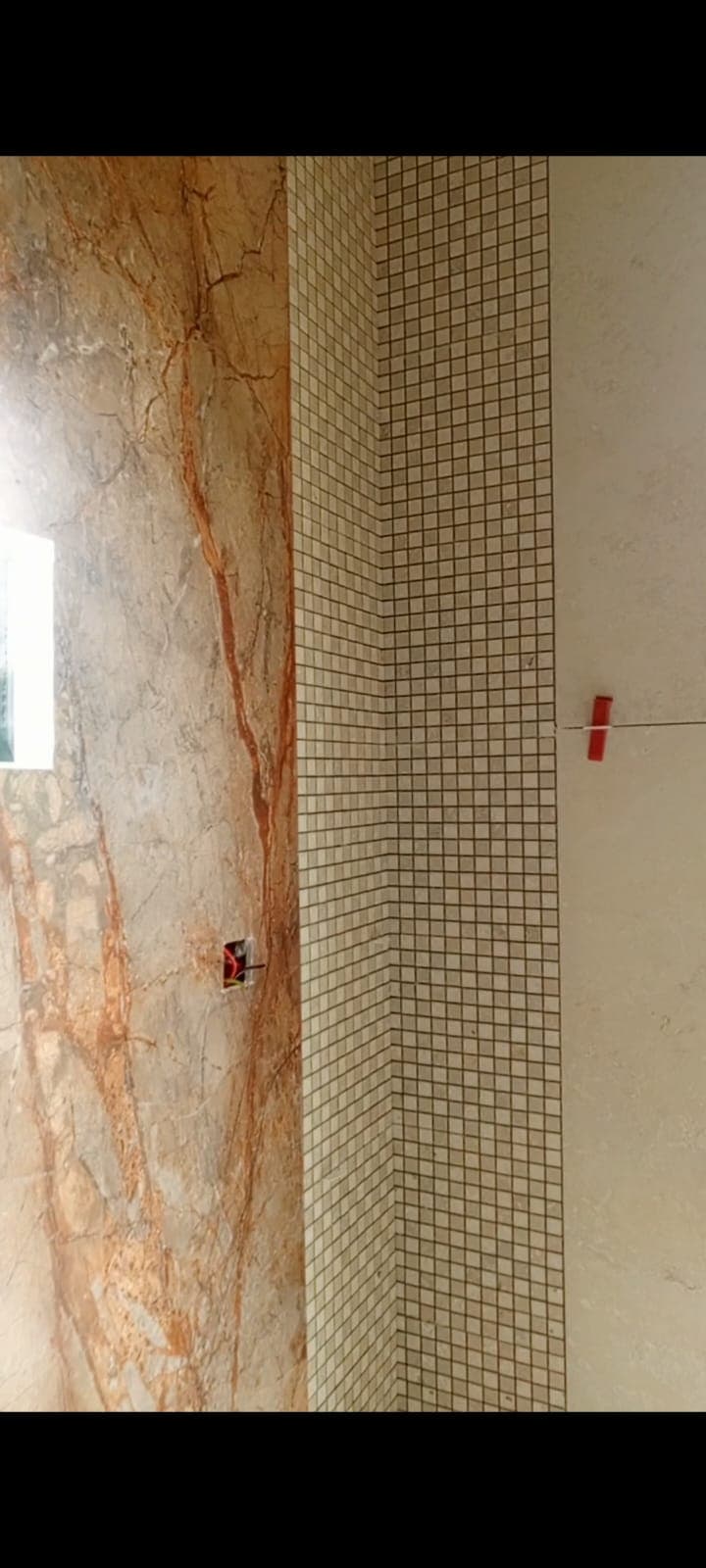

Mosaic-tiled pier meeting the vein-matched feature slab and cream wall tile, Askari 10 bathroom, Islamabad
Askari 10 — 2 Kanal House #12

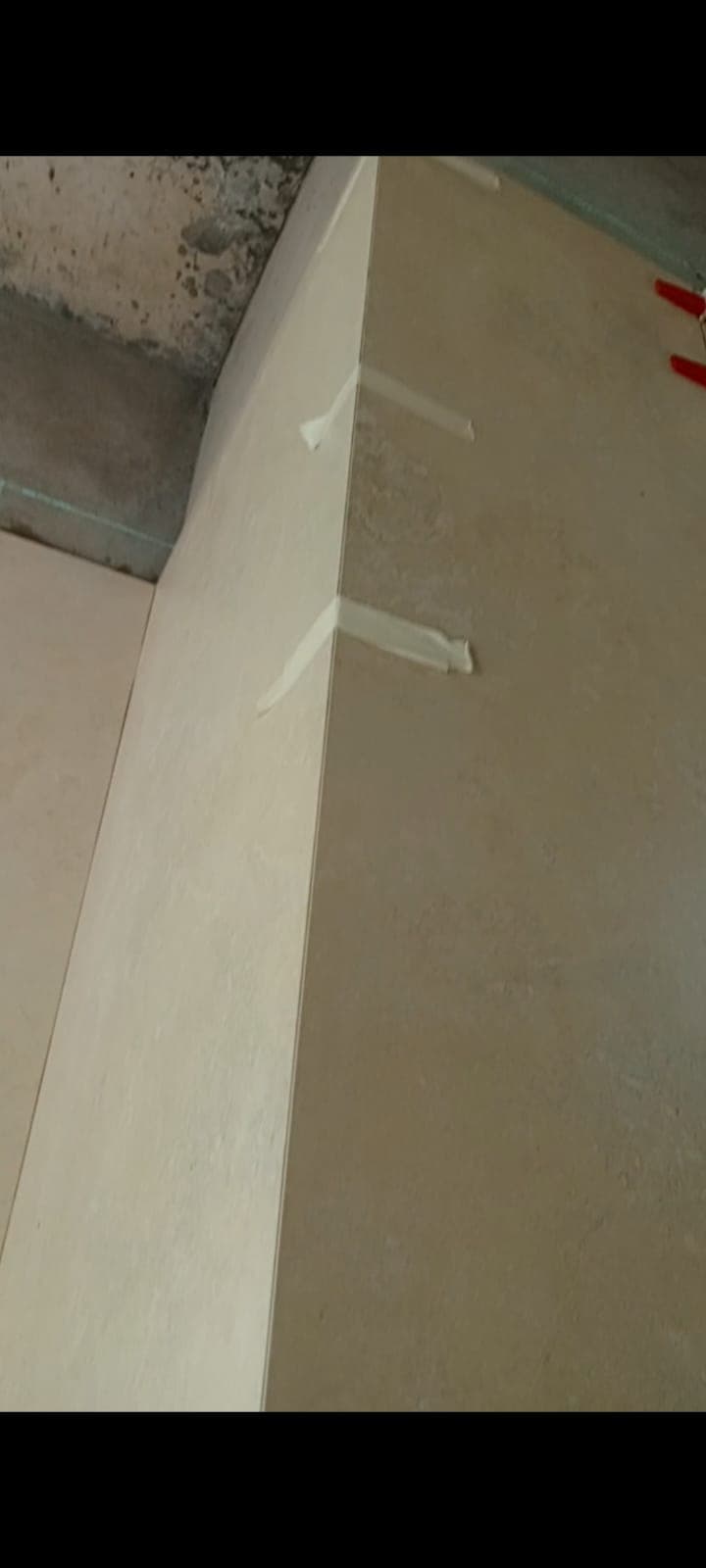

External corner of two large cream porcelain wall tiles held with masking tape while the adhesive cures, Askari 10 bathroom, Islamabad
Askari 10 — 2 Kanal House #13

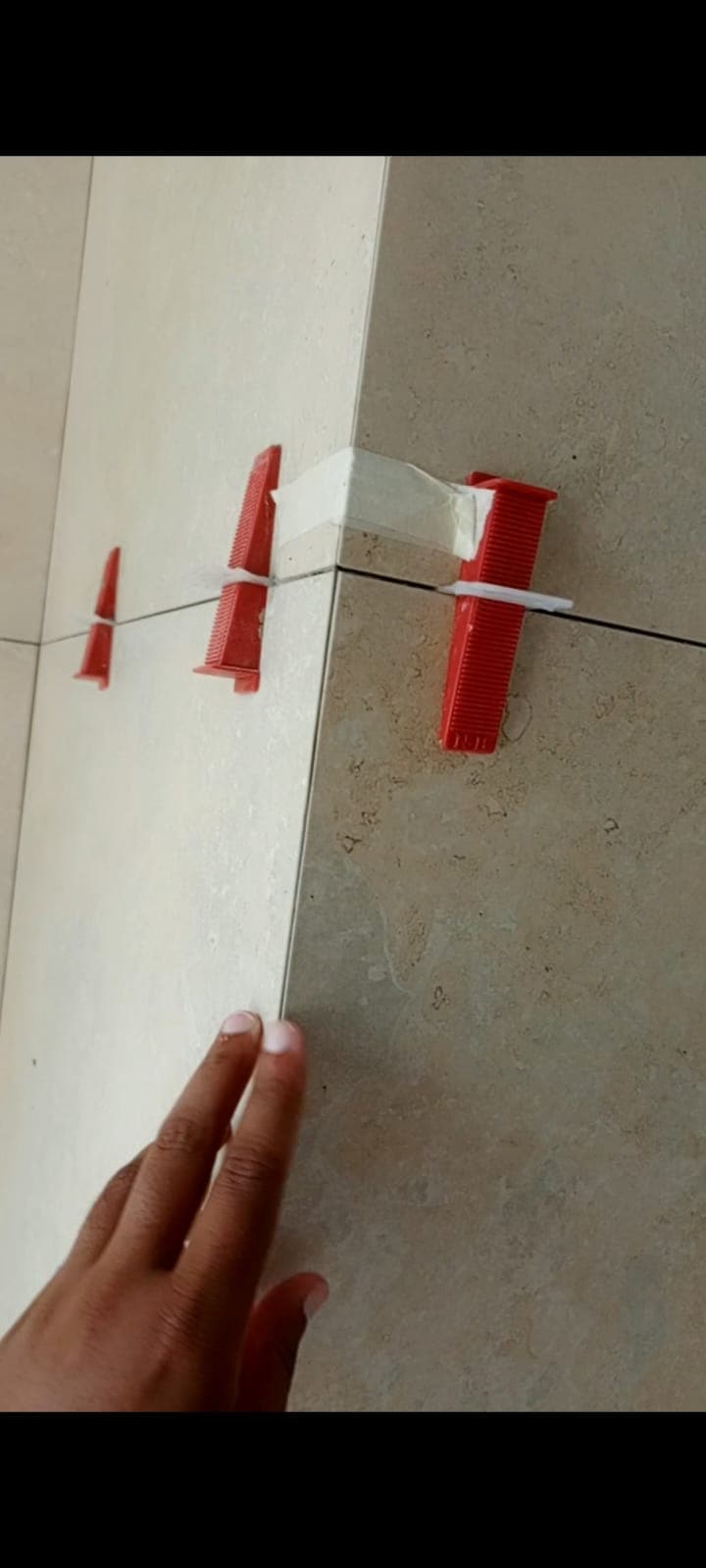

Red tile levelling clips and wedges holding a wall tile joint flush, Askari 10 bathroom, Islamabad
Askari 10 — 2 Kanal House #14

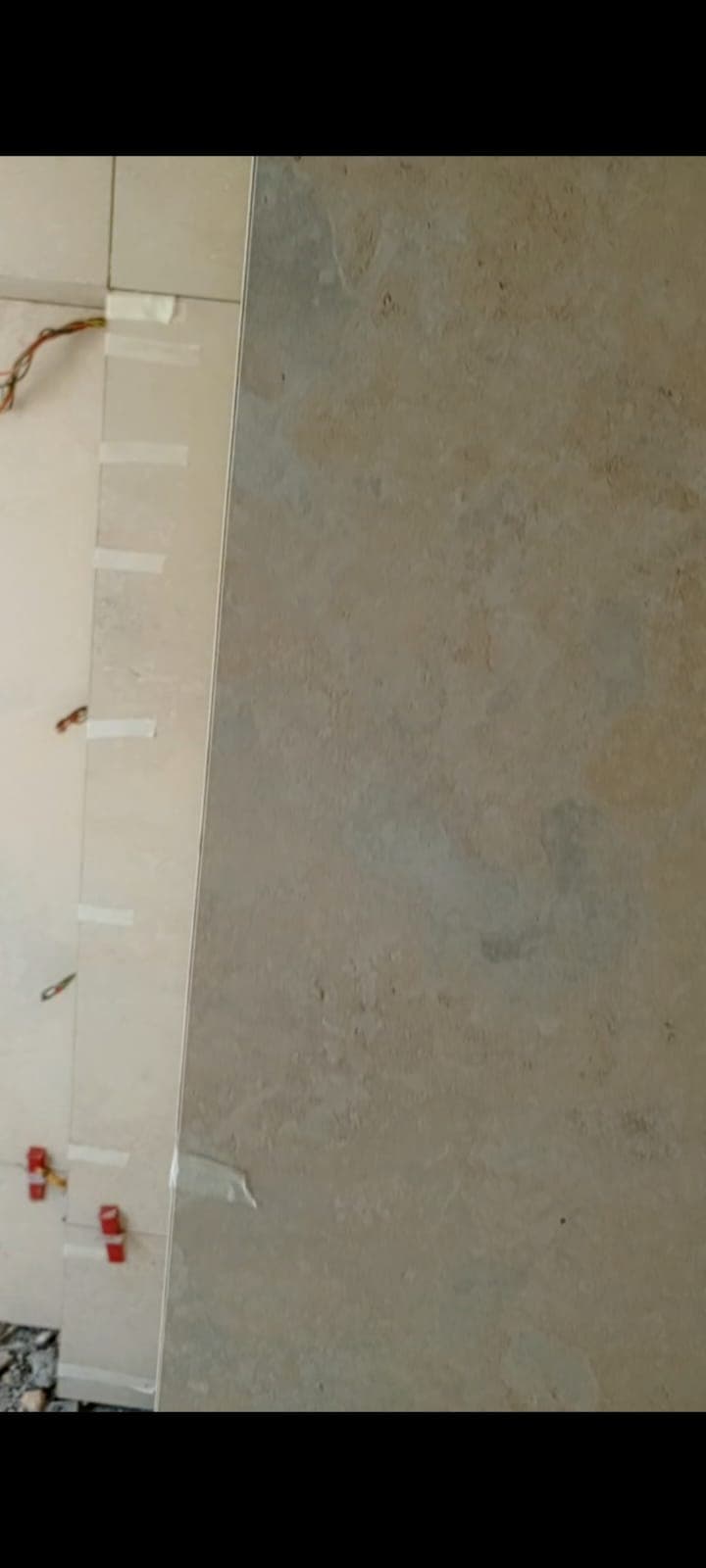

Internal corner of the bathroom with large cream porcelain tiles aligned and taped, Askari 10 Islamabad
Askari 10 — 2 Kanal House #15
